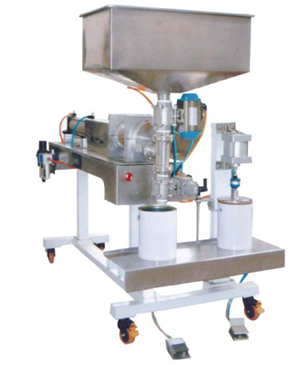

| GJW01-01-(05) piston liquid filling machinae |
 |
Main function：
◆ Pneumatic control
◆ Make use of all imported components,quality is st |
Main function：
◆ Pneumatic control
◆ Make use of all imported components,quality is stable ang reliable
◆ Volume Measurement precision highspeed filling
◆ Low,middle and high-viscosity liquids are able to fill a variety of
◆ To adapt to round,square,flat type and caliber of various cans
◆ Filling head can be repIaeed to ebsure that non-drip,non-splash
◆ Equipped with a hopper level contoller,automatic feeding
Main Technique Parameyer：
|
型号
Model
|
灌装范围（L）
Filling range（L）
|
误差值（ml）
Error value（ml）
|
速度（罐/分）
Speed（cans/min）
|
气源（Mpa）
Air source
|
外型尺寸（mm）
Outside Dimension
|
|
GWJ01-01
|
0.1-1
|
±1
|
15-25
|
0.5
|
1530×1000×1650
|
|
GWJ01-05
|
1-5
|
±1
|
10-15
|
0.5
|
1750×1000×1650
|
|
|
|
