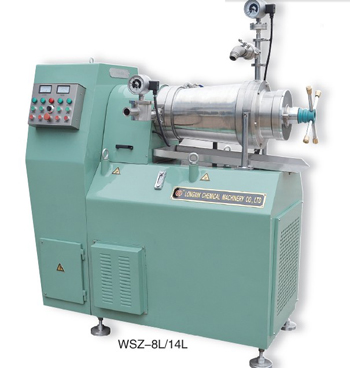

| WSZ high-viscosity horizontal internal cooling series |
 |
Introduction This machine is designed specially for predispersion and fine dispersion of high visco |
Introduction
This machine is designed specially for predispersion and fine dispersion of high viscosity material(offset oil ink).It can beused singly and also together with three rollers grinder through connection as well as full automatic production line. It is an ideal equipment for producing offset oil ink and high viscosity material.
Features
¡ñPLC is used for control, analogous drawing and touch screen are available (optional).
¡ñTapered milling chamber and trapezoid rotor are specially designed to mill high-viscosity materials. The advanced internal-cooling
device is efficient enough to dispel the heat generated during high-viscosity milling in the milling chamber.
¡ñMechanical sealing and sealing lips are all imported from Germany, which help to crack the hard nut that material tends to leak from
the milling chamber in high-viscosity milling operation.
¡ñA magnetic filter with magnetic flux of 8000 gauss, which eliminatesforeigh-metal impurities contained in the paste to be milled,
ensures product purity as well as equipment safety of the next process.
¡ñVolume variable pistontype milling chamber changes energy density and barrel pressure to attainbest dispersion and milling results.
 |
|
|
|
